Supsension Clamp

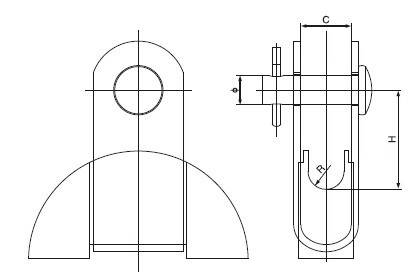

Suspension Clamp (Type CIRT)
Basic Data
Type
Dimensions(mm) Cross section(mm²) Weight(kg)
H C R ŽÁ
CIRT 41 21 8 12 120~150 0.227

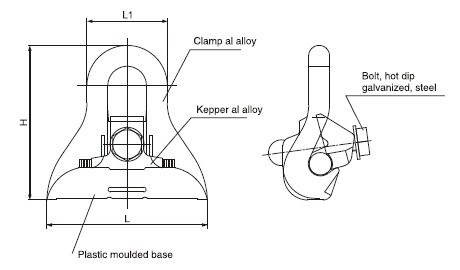

XHG Suspension Clamp(Export Type)
Basic Data
Type
Conductor(mm²) Dimensions(mm) Weight(kg)
L
L1
H
XHG-16~95 16~95 100 50 96 0.26

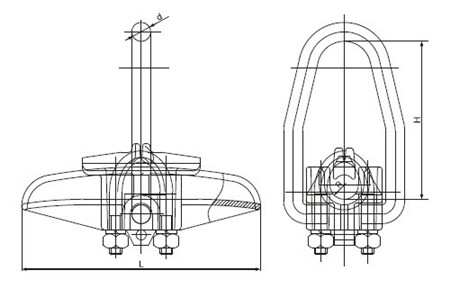

XGH Suspension Clamp
Basic Data
Type
Dimensions(mm) Rated failure load(KN) Weight(kg)
H R L1 d
XGH-35/6 80 5.5 89 11.5 12 0.405
XGH-120/20 100 9 152 12 28 0.510
PS470 Suspension Clamp
Basic Data
Type
Dimensions(mm) Voltage (kv) Cross section(mm²) Weight(kg)
H B M ŽÁ1 ŽÁ2
PS470 148 55 M8 21.5 22.6 1 50~95 0.390

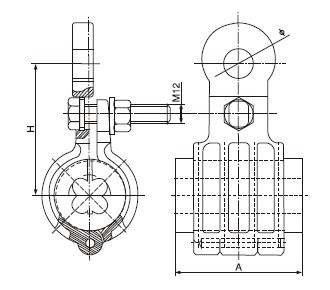

HXD Series Suspension Clamp
Basic Data
Type
Cross section(mm²) Dimensions(mm) Weight(kg)
H
ŽÁ
A
HXD-0 16-25 83 17.5 78 -
HXD-1 35-50
HXD-2 70-95 87 19.5 78 -
HXD-3 120

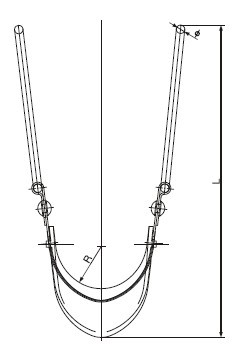

Suspension Clamp(Type ASA)
Basic Data
Type
Dimensions(mm) Cross section(mm²) Weight(kg)
L B R ŽÁ
ASA-300 190 90 25 5 120-240 0.133
Suspension Clamp(Type ASC)
Basic Data
Type
Dimensions(mm) Cross section(mm²) Weight(kg)
L B ŽÁ
ASC-660 185 25 5 120-240 0.114

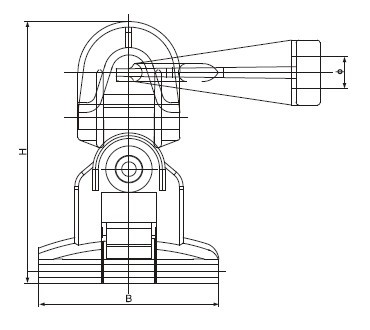

HF-ALM Supension Clamp
Basic Data
Type
Dimensions(mm) Cross section(mm²) Weight(kg)
H B ŽÁ
HF-ALM-25~70 141 97 21 25~70 0.35

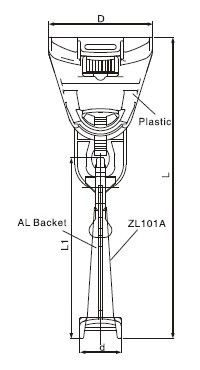

HPS-HCS/500 Suspension Clamp
Basic Data
Type
Dimensions(mm) Cross section(mm²) Weight(kg)
L L1 D d
HPS-HCS/500 292 175 101 40 50-70 0.33
